Care & Maintenance

1. Remove the side brushes.
2. Gently remove any hair that's tangled between the side brush and brush stand.
3. Clean the brush by gently wiping it with a cloth to remove any dust and reshape it.
4. Reinstall the side brushes.

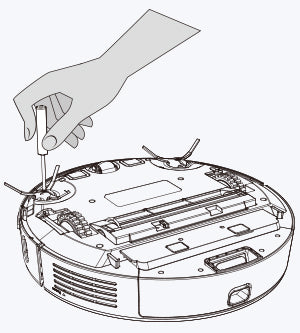

1. Loosen the screw using a screwdriver.
2. Remove the side brushes.
3. Gently remove any hair that's tangled between the side brush and brush stand.
4. Clean the brush by gently wiping it with a cloth to remove any dust and reshape it.
5. Reinstall the side brushes and fasten the screw securely.

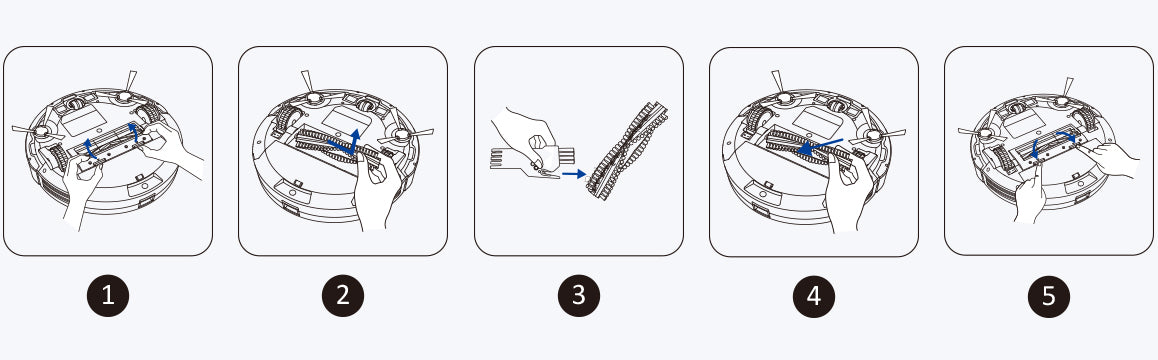

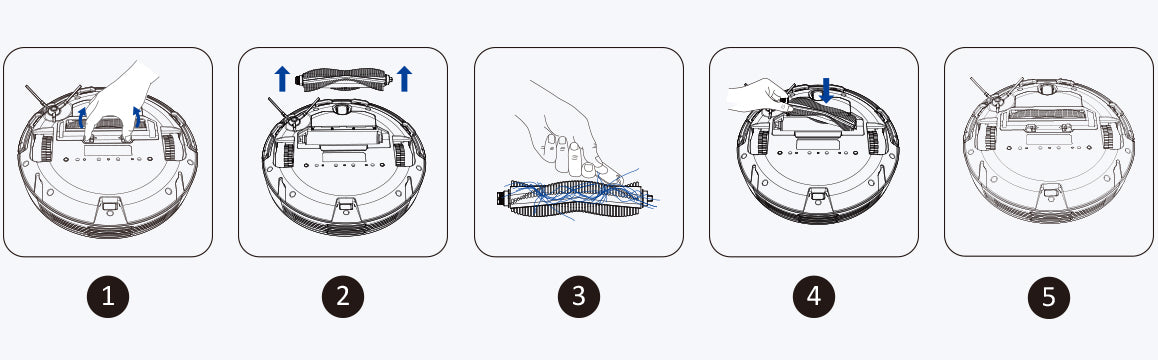

1. Pull the release tabs on the brush guard, lift the guard, and remove any obstructions.
2. Lift the main rolling brush to remove.
3. Clear any hair or debris that has collected around the rolling brush using the supplied cleaning tool.
4. When reinstalling the rolling brush, insert the fixed protruding end first and then click it into place.
5. Spin the rolling brush to ensure it rotates smoothly.
6. Press down to snap the brush guard into place.

1. Pinch the tabs to release the brush guard, lift it, and remove any obstructions.
2. Lift the main rolling brush to remove.
3. Clear any hair or debris that has collected around the rolling brush using the supplied cleaning tool.
4. When reinstalling the rolling brush, insert the fixed protruding end first and then click it into place.
5. Spin the rolling brush to ensure it rotates smoothly.
6. Press down to snap the brush guard into place.

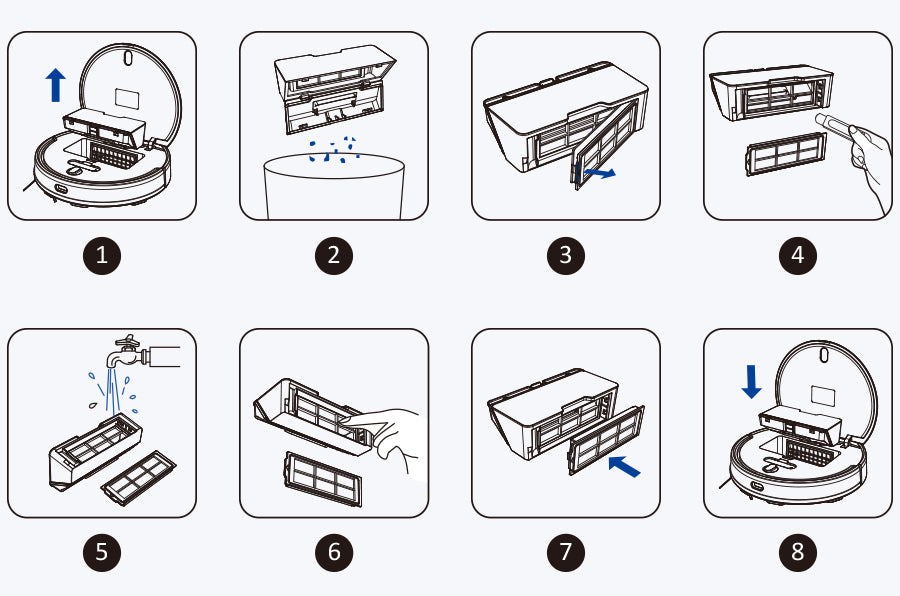

1. Open the cover of the robot and remove the dustbin.
2. Empty the dustbin.
3. Press the release tab, then remove the filter compartment.
4. Clean both the filter compartment and the inner net.
Note that the filter compartment contains both the filter and the plastic filter shield, which cannot be disassembled.
5. Remove any debris by tapping the filter against your trash container.
6. Wash the dustbin and filter compartment when necessary.
7. Thoroughly dry the dustbin and filter compartment before the next use.
8. Insert the filter compartment into the dustbin, and reattach the dustbin to the robot until it clicks into position.

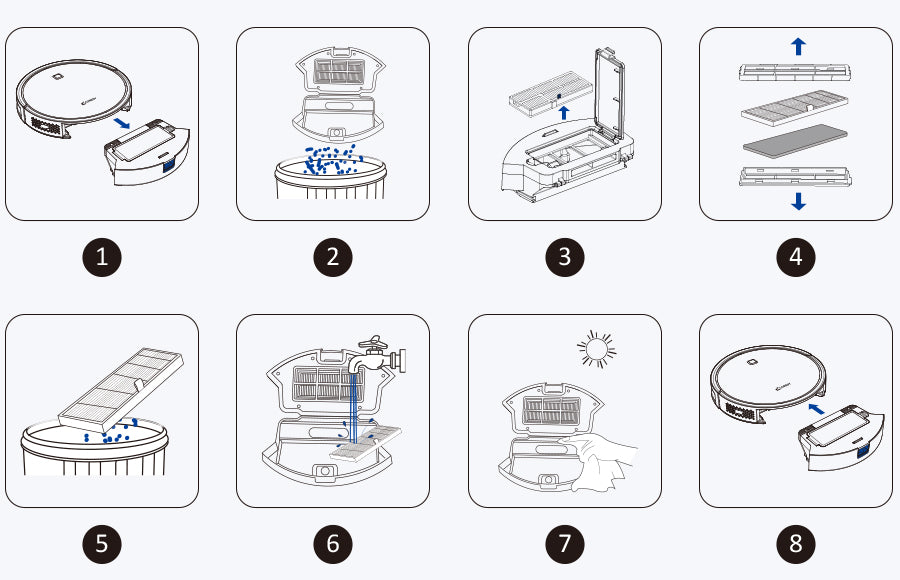

1. Press the dustbin release button and pull to remove it.
2. Empty the dustbin.
3. Press and lift the filter door release tab, then remove filter by grasping the white tab.
4. Clean both the filter compartment and the inner net.
5. Remove any debris by tapping the filter against your trash container.
6. Wash the dustbin and filter compartment when necessary.
7. Thoroughly dry the dustbin and filter compartment before the next use.
8. Insert the filter compartment into the dustbin, and reattach the dustbin to the robot until it clicks into position.

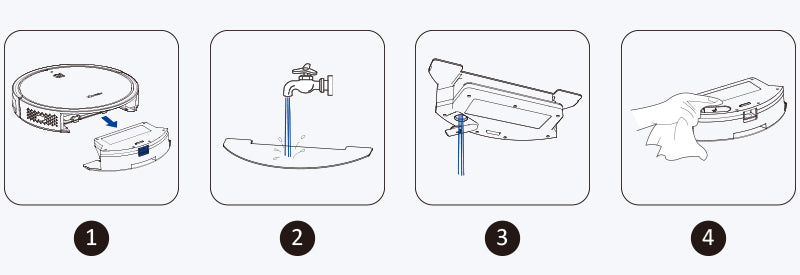

1. Press the release button on the water tank and pull to remove it.
2. Remove the mopping cloth from the water tank, wash it, and lay it flat to dry.
3. Empty any remaining water from the tank.
4. Use a soft cloth to gently wipe the outer surface of the water tank.

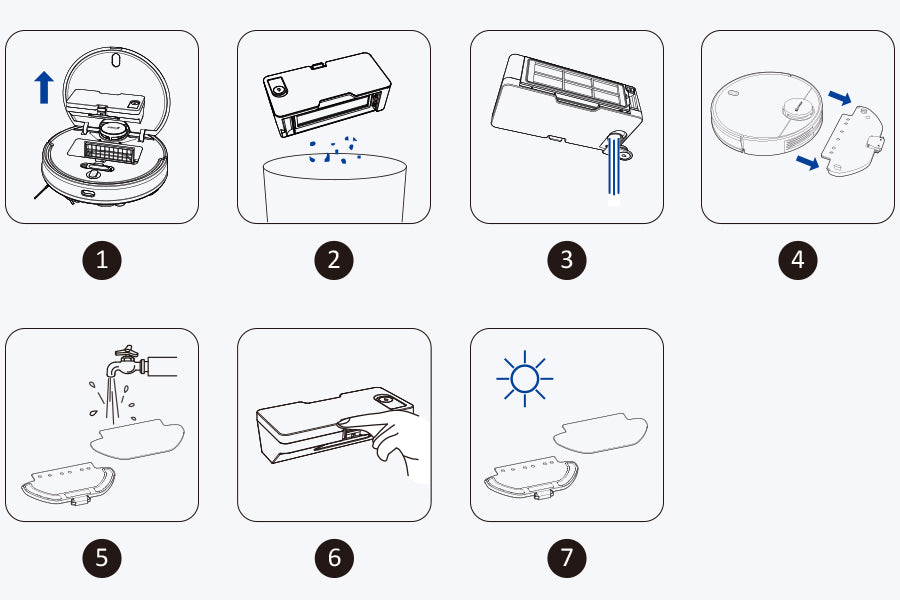

1. Open the cover of the robot and remove the 2-in-1 dustbin and water tank.
2. Refers to "Dustbin & Filter" to clean the dustbin.
3. Empty any remaining water from the tank.
4. Remove the mopping bracket and clean it.
5. Remove the mopping cloth from the water tank, wash it, and lay it flat to dry.
6. Use a soft cloth to gently wipe the outer surface of the 2-in-1 dustbin and water tank.
7. Air-dry the mopping cloth, mopping bracket, and water tank completely to prevent mildew or unpleasant smells.

* This 2-in-1 dustbin & water tank is an add-on accessory compatibble with Coredy SL200 robot vacuum, which is sold seprately.

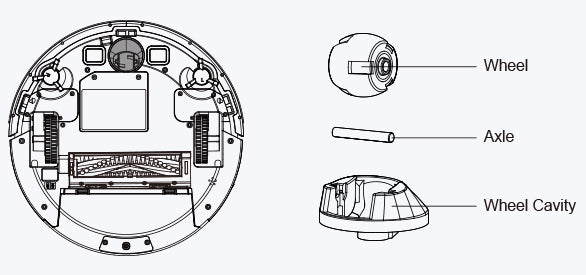

1. Firmly pull the caster wheel to remove it from the robot.
Note: If the caster wheel proves difficult to remove, employ a tool for assistance. Refer to the instructional video for guidance.
2. Remove the wheel from its housing and clear any debris or hair wrapped around it.
3. Remove the axle from the wheel and clear any debris or hair wrapped around it.
4. Remove any debris from inside the wheel cavity.
5. Reinstall the axle into the wheel.
6. Reinstall the wheel into the housing, making sure that both sides snap firmly in place.
7. Reinstall the caster wheel into the robot.

1. Remove any hair or debris that has accumulated around the left/right driving wheels.
2. Push the driving wheels up and down several times and shake out any loose debris that may be trapped in the wheel well.
3. Briskly turn both wheels by hand, ensuring they turn freely.

Periodically inspect the Lidar distance sensor (LDS) module located on the robot's upper part for any accumulation of hair or debris. If any buildup is present, carefully remove it from the module.
Note: Avoid inserting cotton swabs into the module's openings.

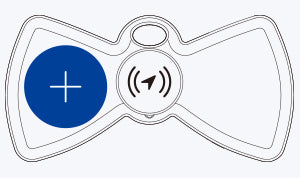

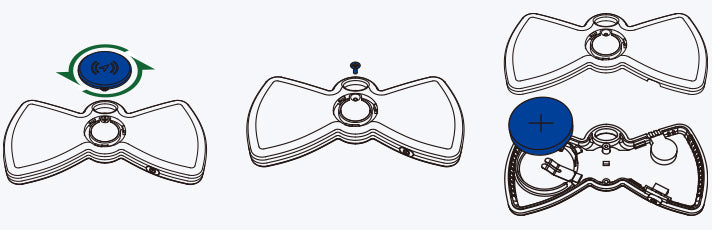

1. Rotate the cover button counterclockwise.
2. Detach the cover.
3. Loosen the inner screw.
4. Open the Bluetooth tracker and remove the battery.
5. Install a new CR2032 battery in the device making sure the positive side (+) faces upward.
6. Tighten the screw and place the cover on the device.
7. Using a clockwise motion, push the cover rotation button until the rotation stops.
